FYPCB: Your Best Partner for Electronic Product Development.
One-stop Service for Schematic Diagram Design, PCB Design&Layout, PCB Fabrication, PCB Assembly
We've built our reputation as a premier multi-layer PCB manufacturer through strategic investments in world-class infrastructure and technology. Our state-of-the-art 166,666 m² PCB industrial park represents the pinnacle of modern circuit board production, combining strict international environmental certifications with cutting-edge manufacturing capabilities.

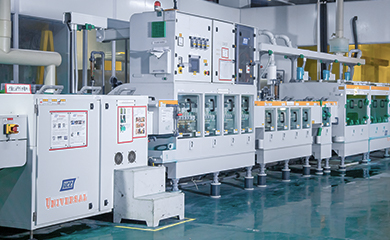

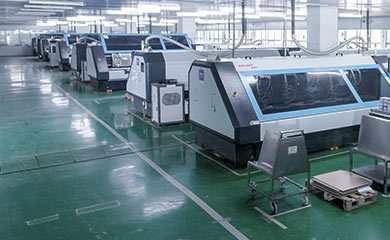

Drilling Systems: Taiwan Dongtai high-precision drilling machines (±25μm accuracy) | Lamination Technology: Japanese Meiki vacuum heating presses for flawless multilayer bonding | Plating Lines: Taiwan Ming Ming automated plating systems with uniform copper deposition |

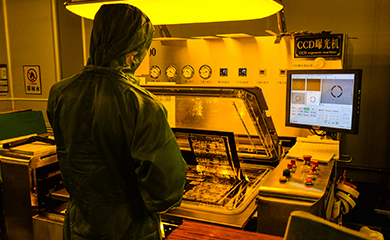

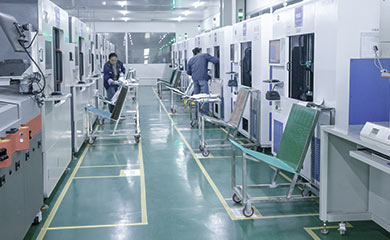

Imaging Solutions: High-end LDI laser exposure machines for 15μm line/space resolution | Quality Assurance: German-made flying probe testers for 100% electrical verification | Marking Systems: Digital inkjet printers for permanent, high-resolution board identification |

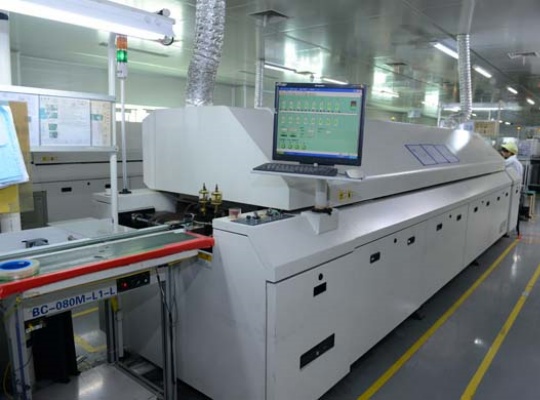

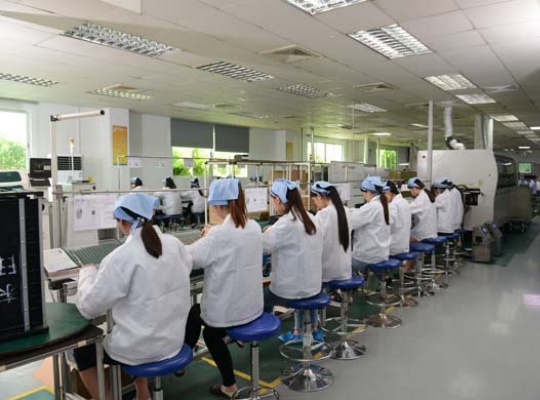

We operate two state-of-the-art SMT facilities spanning 15,000 square meters, delivering unmatched production capacity and precision for your PCBA needs. Our factories boast a remarkable daily production capacity exceeding 95 million solder joints, supported by cutting-edge automation and rigorous quality control systems.
Automated SMT Lines: Featuring high-speed placement capabilities up to 42,000 components per hour | Solder Paste Inspection: Ensures perfect paste deposition before placement |

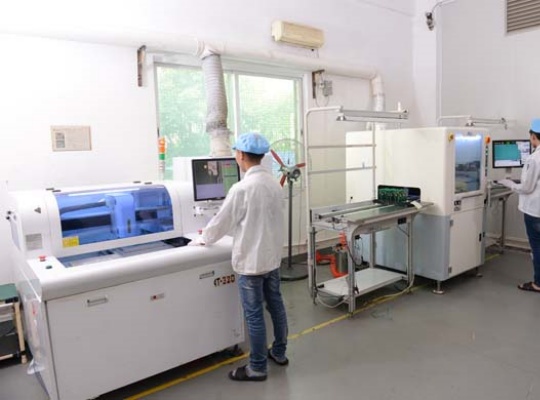

Automated Optical Inspection: Verifies component placement accuracy to 10μm | X-Ray Systems: For complete BGA and QFN solder joint analysis |
