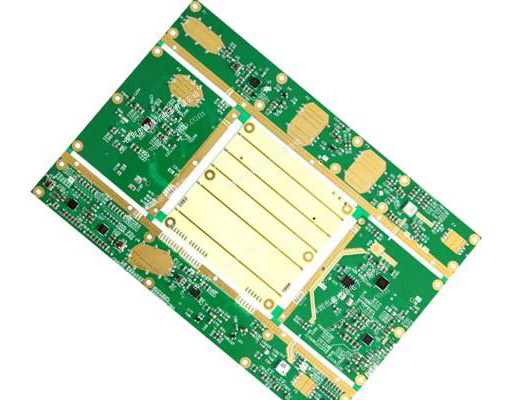

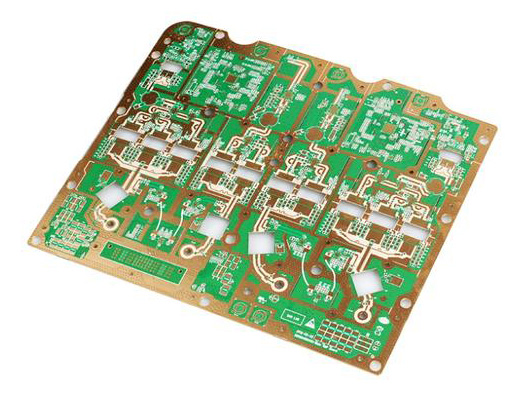

Hybrid Stack-Up PCB
A Hybrid Stack-Up PCB combines both rigid and flexible materials within a single printed circuit board (PCB) design, providing a versatile solution for complex electronic systems. The hybrid stack-up structure allows for the integration of flexible circui
Welcome your inquiry
What is a Hybrid Stack-Up PCB?
A Hybrid Stack-Up PCB integrates rigid and flexible circuit materials in a single board, enabling compact, durable designs for advanced electronics like wearables and automotive systems.
Key Features:
Combination of Rigid and Flexible Layers: Integrates rigid PCBs and flexible circuits within a single design, offering more versatile form factors.
Compact and Lightweight Design: Reduces overall size and weight while maintaining performance.
Enhanced Durability: Combines the strength of rigid materials with the flexibility of flexible substrates, ensuring long-term reliability.
