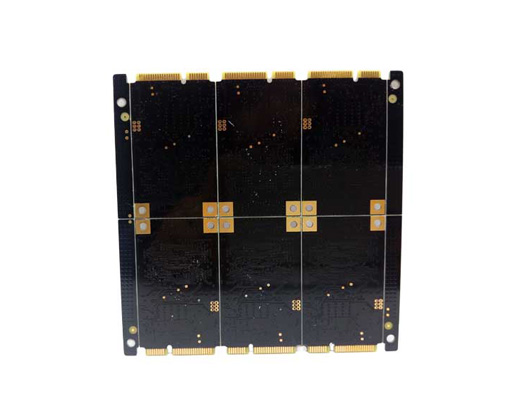

4-Layer Impedance Gold Finger PCB
This 4-layer gold finger PCB is engineered for high-speed SSD applications, combining impedance-controlled traces and gold-plated edge connectors to ensure reliable data transfer and robust performance in consumer electronics.
Welcome your inquiry
Product Features & Benefits:
✔ Gold Finger Edge Connectors – 30μ" gold plating ensures 500+ insertion cycles for durable SSD connections
✔ Impedance Control – Matched trace impedance (50Ω ±7%) for stable high-speed signals (PCIe/NVMe)
✔ High-Density Routing – 6/4mil outer layer and 5/4mil inner layer traces for compact SSD designs
✔ Optimized for SSDs – Supports 5Gbps+ data transfer with minimal signal loss
✔ Robust Construction – 1.0mm FR4 thickness for mechanical stability
