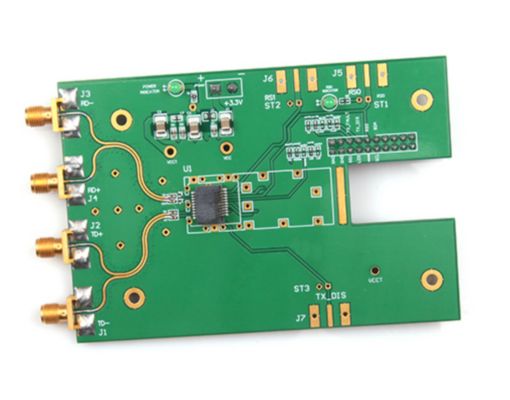

High-Frequency 10G SFP Adapter PCBA

Precision SMT PCBA Manufacturing for Optical Networks

Our 10G SFP Adapter Board delivers reliable 10Gbps signal conversion through advanced SMT PCBA manufacturing processes. Designed for telecom carriers and data center operators, this high-frequency adapter PCBA ensures optimal signal integrity with:

• Multi-layer PCB substrate (FR-4/HF or Rogers material options)

• 0402/0201 component placement for high-density designs

• Impedance-controlled traces (±5% tolerance)

• Gold finger edge connectors for durable mating cycles

Streamlined PCBA Assembly Process

Every adapter board undergoes our rigorous China PCBA assembly workflow:

1. Solder paste printing with 25μm accuracy

2. High-speed SMT placement (30,000 CPH)

3. Reflow soldering with nitrogen environment

4. 3D AOI inspection (0.01mm resolution)

5. Signal integrity testing up to 12.5Gbps
